EV Grade A LiFePO4 Battery Cells

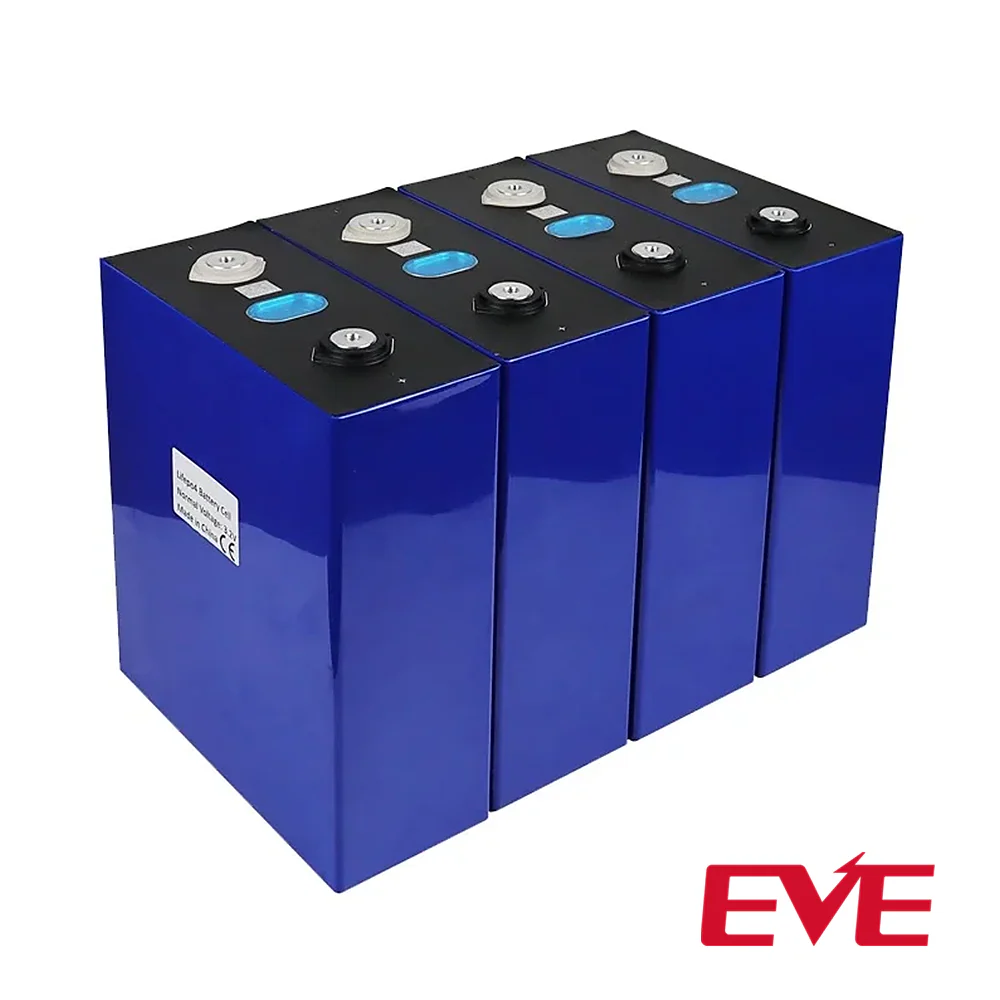

Discover the EV 3.2V 100Ah LiFePO4 Prismatic Battery Cell, your key to uninterrupted energy solutions. This high-performance battery cell is engineered to meet your power needs with exceptional reliability. The battery cell needs to be disassembled by yourself, please make sure you have the knowledge to do so before purchasing. If you have any questions, please contact [email protected].
Product Features
- High Capacity: The 3.2V 100Ah prismatic LiFePO4 battery cell offers outstanding performance.
- Superior Safety: Recognized as one of the safest lithium battery types in the industry.
- Eco-Friendly: Lithium iron phosphate is a new electrode material for lithium-ion batteries, known for its large discharge capacity, affordability, non-toxicity, and environmental friendliness.
- Widely Applications: Electric vehicle, RV, electric bicycles/scooters, golf carts, boats, trolling Motor, off-gird solar energy storage, and ESS.
- Long Cycle Life: Over 6,000 cycles at 80% Depth of Discharge (DOD).
Specifications
Battery brand: EV
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal voltage: 3.2V
Operational voltage: 2.5 V – 3.65 V
Nominal capacity: 100Ah
AC Impedance Resistance: ≤0.5mΩ
Weight: 1.98±0.1kg
Dimensions (mm): 200.5*130.3*36.7±0.5mm

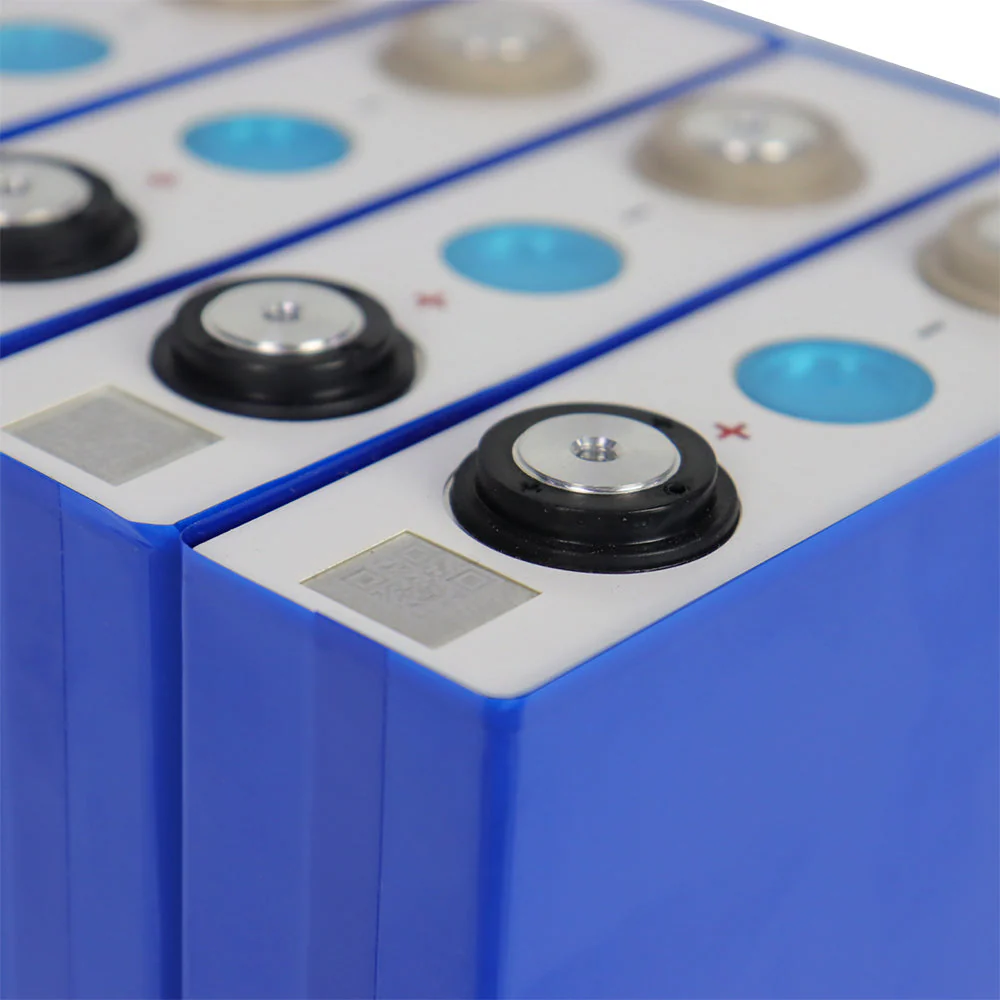

Terminal: M4 Screw Hole
Cycle life: ≥6000 cycles (1C/1C, 25±2℃, SOC≥80%)
Standard Charge/Discharge Current: 0.5C/0.5C
Standard Charge/Discharge Cut-off Voltage: 3.65V/2.5V
Continuous Charge/Discharge Current: 1C/1C
Pulse Charge/Discharge Current(30s): 2C/2C
Recommended SOC window: 10%～90%
Charging Temperature: 0℃~55℃
Discharging Temperature: -20℃~55℃
